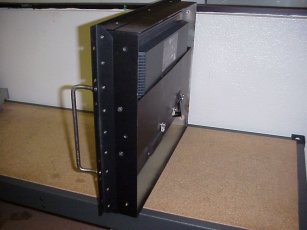

Rugged Specifications:
Height: 15.7 inches
Width: 19.0 inches
Depth 3.0 inches
Weight: 18.5 lbs (with monitor)
Monitor Specifications:
Analog Input Digital Input
Panel Type 46 cm (18.1 inch) TFT Color LCD Panel
Pixel Pitch 0.2805 mm × 0.2805 mm
Display Color 16.7 million colors
Viewing Angles Horizontal: 170°, Vertical: 170°
Scanning Frequency H: 27- 82 kHz, V: 50 – 85 Hz H: 27 – 64 kHz, V: 60 Hz (VGA Text: 70 Hz)
Brightness 250 cd/m2 (typical)
Contrast Ratio 400:1 (typical)
Response Time 40 ms
Dot Clock 135 MHz 108 MHz
Input Signals RGB Analog DVI Standard 1.0
Input Terminals DVI-29 pin × 2
Active Display Size 359 mm (H) × 287 mm (V) / 14.1" (H) × 11.3" (V)
Viewable Image Size Diagonal: 459 mm / 18.1"
Recommended Resolution 1280 dots × 1024 lines
Plug & Play VESA DDC 2B
Screen Control ScreenManager®, One Touch Auto Adjustment Function
Power Requirements AC 100 - 120V / 200 - 240V, 50 - 60 Hz
Power Management System VESA DPMS, EIZO MPMS DVI-DMPM
Power Consumption 56 watts (typical)
Power Save Mode Less than 5 watts
OSD Languages English, German, French, Spanish, Italian, Swedish, Japanese
Dimensions: 399 mm (W) × 328 (H) × 65 mm (D)
15.7" (W) × 12.9" (H) × 2.6 " (D)
Weight: 5.5 kg / 12.1 lbs
Certifications and Standards TCO'991, TÜV/Ergonomics, TÜV/GS, c-Tick, CE, CB, UL 1950, CSA C22.2 No.950, FCC-B, Canadian ICES-003-B, TÜV/S, VCCI-B, EPA ENERGY STAR® Program
USB Standard USB Standard Rev. 1.1
USB Ports 1 upstream, 4 downstream
Supplied Accessories AC power cord, user's manual, signal cables (DVI-I ~ D-Sub mini 15 pin, DVI-D ~
DVI-D),
|
