RB-2023 Spec Sheet .PDF

• PASSED Grade A MIL-STD-901D
• PASSED MIL-STD-167-1
• The FPD was instrumented and tested on the lightweight hammer
• The FPD will be categorized in a formal report to NAVSEA as:
  • Type A
  • Class I
  • Grade A

  Features

  • 1280 x 1024 max resolution @ 76Hz
  • Full 17" or 19" viewable screen
  • OSD control from front panel
  • Absolutely no flicker
  • Built in A/B video switch
  • 80° /80° /80° /80° viewing angle

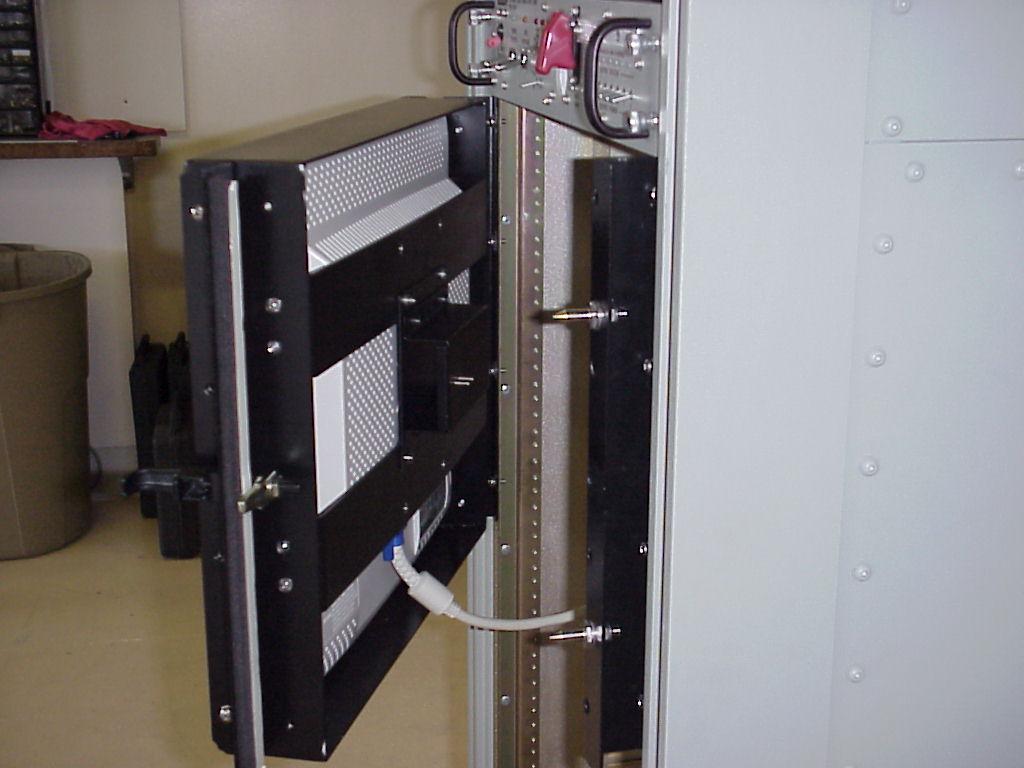

  COTS Rugged hinged FPD

  • Hinged version to allow usage of interior rack space behind the FPD
  • Will mount in standard EIA 19" racks
  • Power consumption is only 40 watts
  • Will sync on green using only 3 wires RGB
  • Will work with
    • SUN
    • TAC-3
    • TAC-4
    • NT
    • PC

  Video interface options are:

  • 5 wire BNC
  • HD 15-PIN SVGA
  • 3 wire BNC sync on green
