HP
9000/700 Series Computer Systems
|
RB Enterprises can
configure a HP 9000/700 series system to your
specifications. Carry in-stock systems, memory, hard drives,
video RAM upgrades, eisa cards, etc. The HP 9000/700 series
computers are 712, 715, 720, 725, 730, 735, 750 & 755.
|
|
|
|

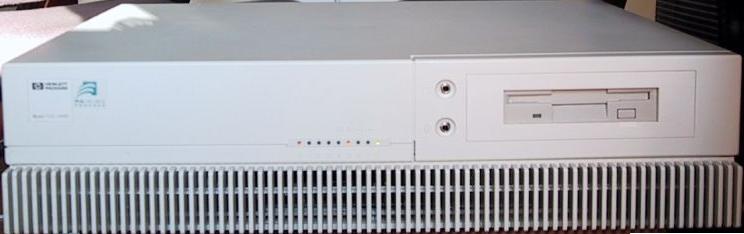

HP 9000/715 |
|
|
|
|
HP 715/33 (A2610A):
-
PA-7100
CPU 33MHz w/ 64/64KB off-chip L1 I/D cache
-
ASP Chipset, CRX graphics, 8-bit, Intel 82501 & 82350
chips
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus, PBus processor/memory bus, VSC main bus, SGC
expansion.
-
6 Memory Sockets, 72-Pin ECC SIMMs, 8-32MB modules,
16MB min and 256MB Max
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
HP HIL, HD15 VGA, 15-PIN AUI 10Mbit Ethernet, DB25
parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE Fast Narrow
external connections
HP 715/50 (A2625A):
-
PA-7100
CPU 50MHz w/ 64/64KB off-chip L1 I/D cache
-
ASP Chipset, CRX graphics, 8-bit, Intel 82501 & 82350
chips
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus, PBus processor/memory bus, VSC main bus, SGC
expansion.
-
72-Pin ECC SIMMs, 8-32MB modules, 16MB min and 256MB
Max, 8 memory sockets
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
HP HIL, HD15 VGA, 15-PIN AUI 10Mbit Ethernet, DB25
parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE Fast Narrow
external connections
HP 715/64 (A4090A):
-
PA-7100LC
CPU 64MHz w/ 1 KB on-chip I L1 and 256 KB off-chip unified I/D L1
cache
-
LASI ASIC; Wax Chip; Artist graphics, 8-bit, Intel
82503 chip, 2 AM29F010 Flash EPROMs
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus. One GSC expansion slot
-
72-Pin ECC SIMMs, 8-32MB modules, 16MB min and 256MB
Max, 8 memory sockets
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
SMD-10, HD15 VGA, 15-PIN AUI 10Mbit Ethernet, DB25
parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE Fast Narrow
external connections
HP 715/75 (A2084A):
-
PA-7100
CPU 75MHz w/ 256/256KB off-chip L1 I/D cache
-
ASP Chipset, CRX graphics, 8-bit, Intel 82501 & 82350
chips
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus, PBus processor/memory bus, VSC main bus, One SGC
expansion.
-
72-Pin ECC SIMMs, 8-32MB modules, 16MB min and 256MB
Max, 8 memory sockets
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
HP HIL, HD15 VGA, 15-PIN AUI 10Mbit Ethernet, DB25
parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE Fast Narrow
external connections
HP 715/80 (A4093A):
-
PA-7100LC
CPU 80MHz w/ 1 KB on-chip I L1 and 256 KB off-chip unified I/D L1
cache
-
LASI ASIC; Wax Chip; Artist graphics, 8-bit, Intel
82503 chip, 2 AM29F010 Flash EPROMs
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus, One GSC Expansion slot
-
72-Pin ECC SIMMs, 8-32MB modules, 16MB min and 256MB
Max, 8 memory sockets
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
SMD-10 connector, HD15 VGA, 15-PIN AUI 10Mbit
Ethernet, DB25 parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE
Fast Narrow external connections
HP 715/100 (A4091A):
-
PA-7100LC
CPU 100MHz w/ 1 KB on-chip I L1 and 256 KB off-chip unified I/D L1
cache
-
LASI ASIC; Wax Chip; Artist graphics, 8-bit, Intel
82503 chip, 2 AM29F010 Flash EPROMs
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus, One GSC expansion slot
-
72-Pin ECC SIMMs, 8-32MB modules, 16MB min and 256MB
Max, 8 memory sockets
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
HP SMD-10 connector, HD15 VGA, 15-PIN AUI 10Mbit
Ethernet, DB25 parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE
Fast Narrow external connections
HP 715/100XC (A4340A):
-
PA-7100
CPU 100MHz w/ 1 KB on-chip I L1 and 1024 KB off-chip unified I/D L1
cache
-
LASI ASIC; Wax Chip; Artist graphics, 8-bit, Intel
82503 chip, 2 AM29F010 Flash EPROMs
-
GSC system level I/O bus, EISA expansion I/O bus,
SCSI SE Narrow bus, One GSC expansion slot
-
72-Pin ECC SIMMs, 8-32MB modules, 16MB min and 256MB
Max, 8 memory sockets
-
2 trays for Fast-Narrow SE 50-pin SCSI HDD, 1 tray
for 5.25 half height Fast-Narrow 50-pin scsi drive (externally
accessible)
-
SMD-10 connector, HD15 VGA, 15-PIN AUI 10Mbit
Ethernet, DB25 parallel, 2 RS232C Serial ports, 50-pin HD SCSI-2 SE
Fast Narrow external connections
|
|
| 9000/715/100, A4091A, A4091AR, A4096A,
A4097A, A4340A, A4340AR, A4341A, A2610A, A2611A, A2612A, A2612AR,
A2613A, A2613AR, A2614A, A2616A, A2617A, A2617AR, A2618A, A2619A,
A2619AR, A2620A, A2620AR, A2621A, A2621AR,A2625A, A2627A, A2627AR,
A2627AU, A2627BU, A2629A, A2629AR, A2630A, A2631A, A2631AR, A2632A,
A2633A, A2633AR, A2634A, A2634AR, A2634AU, A2635A, A2635AR,9000/715/64,
A4090A, A4090AR, A4094A, A4095A, A2084A, A2896A, A2896AR, 9000/715/80,
A4093A, A4093AR, A4108A, A4109A
|
|
| |
|
| |
|
| |
|
| |
|
|
